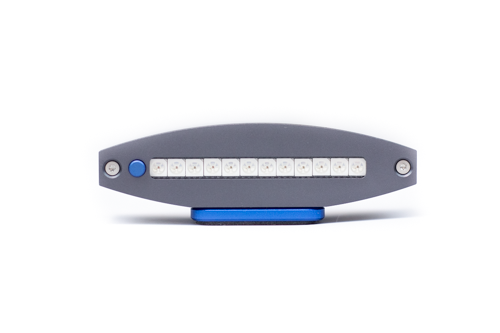

APEX Pro Gen II Track Coach
The new 2nd Generation APEX Pro Device implements all of the knowledge we acquired designing, manufacturing, and selling the original APEX Pro device and gives you an even more powerful tool. APEX Pro is known for helping you find your limit on track, and learn to correlate your control inputs (steering, gas, and brake) with getting the tire to the limit.
From Track Days and Road Racing to Auto-cross and Hill-Climb, APEX Pro Gen II enables you to improve lap times while on track and simplifies post-session data review with the most intuitive data review software available.
Included with your purchase:
- APEX Pro Gen II Unit
- 6″ Charging Cable (Micro USB-C)
- Magnetic Baseplate with 3M Dashboard Adhesive
- Alcohol cleaning pad
WEIGHT 16 oz DIMENSIONS 6 × 3.5 × 2 in WHATS IN THE BOX?
Gen 2 Unit
Gen 2 APEX Baseplate with 3M adhesive tape
Micro-USB charging cable
Real-time filtering, modeling, and feedback (12k samples/second)
Low profile dash-top display (1.125 x 1.125 x 3.5") – no wiring required
5 hours of driving on a single charge
Wireless communication with iOS app
High-brightness RGB LED display (400 mcd)
N42 magnetic alignment/mounting clip
ARM Cortex Microprocessor
9-axis Inertial Measurement Unit
12-bit precision accelerometer (+/- 4 G)
16-bit precision gyroscope (+/- 250 deg/s)
Self-calibrating FIR and IIR filtering on all sensors
10 Hz, satellite augmented GPS+GLONASS receiver
Temperature-compensated gyroscope and GPS clock
APEX Pro is a tool for competitive drivers. From Track Days and Road Racing to Auto-cross and Hill-Climb, APEX Pro is a tool that helps improve lap times while on track and simplifies post-session data review with the most intuitive software interface available.
APEX Pro pairs using Bluetooth with your Apple (iOS Smartphone) to automatically save data to the APEX App. It provides accurate lap-times at over 200 official tracks around the world, and even allows for custom track creation. While on track, precisely filtered data is logged at 10 Hz and sent to the phone. APEX has a suite of tools allowing drivers to review and replay data overlaid on track maps or plotted in many ways. To compare laps with other drivers, simply email or AirDrop recorded sessions to fellow drivers or driving instructors. Drivers can instantly overlay and compare sessions from the same track. While you are out on the track, friends and crew members can watch your driving and lap-times (and with Gen II, Telemetry!) from anywhere in the world using the CrewView social platform (iOS).
Red lights on the APEX Pro display indicate un-used potential. In motorsport terms, the tires are not at their limit. This limit is calculated by taking in thousands of sensor measurements a second from the internal GPS and accelerometers (9 Axis IMU). These raw sensor measurements are then filtered through the APEX algorithm derived from years of testing at all levels of motorsport. This process on takes a lap or two of driving at pace, and from these measurements APEX determines the car’s road holding ability (based on your driving, not a theoretical limit). That is how APEX helps you find YOUR limit. The peak measurements are compared with the other measurements to determine if those peak measurements seen in one area of the track are achievable elsewhere. Put another way you may be faster in one section of the track than another, and that is how APEX Learns where the available grip is. Red Lights represent the limit determined by the APEX algorithm, Green Lights are how close you are from that limit. For more information, check out the APEX Pro Startup Guide linked below!
Gen II Features:
- Smoother more precise data (Satellite map and Data graphs)
- Easier interpretation of APEX Coaching model (100% APEX Score is possible!
- Predictive Timing display option on the APEX LED’s
- Battery indicator light on the unit (Green = fully charged)
- Lower profile design
- Increased battery life (6+ hours)
- Charging indication: Red LED by charging port = unit charging. Green LED by charging port = Unit is done charging.
- USB-C charging cable
- New APEX App User Interface for easier use
- Telemetry: Live Streaming of Speed, Long G, Lat G data traces
How do these New features benefit you?
- Easier to interpret Real Time Display model (no more red lights on the straights if you get a good exit!)
- Predictive on LED’s makes it super simple to see if you are trending faster or slower than your best lap so far!
- Lower profile means it takes up even less space on the dash so your vision is not obstructed!
- You now know if your APEX Pro unit is being charged when you plug it in, and you know it’s fully charged!
- Telemetry is perfect for track side instruction and endurance racing!
Take advantage of everything APEX Pro has to offer!
